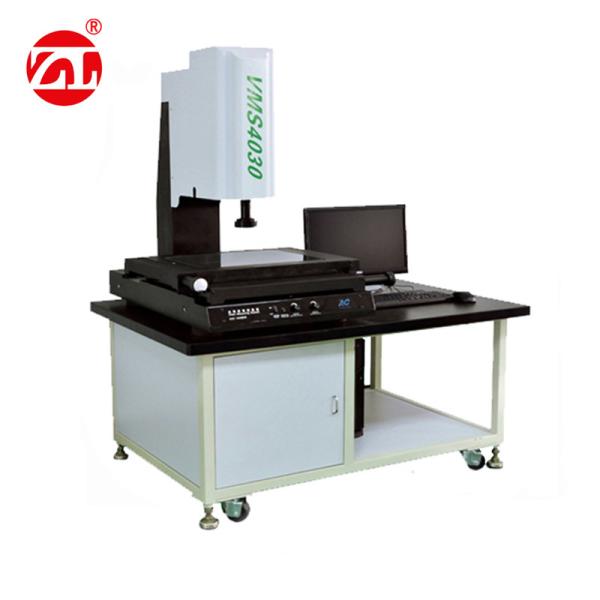

3D Manual Video Measuring Machine Color CCD Camera / Optical Measurment System

Brand Name : ZL

Model Number : ZL-1503

Certification : ISO

Place of Origin : China

MOQ : 1 SET

Price : Negotiable

Payment Terms : T/T, L/C, Western Union

Supply Ability : 10 SET PER MONTH

Packaging Details : Packaged with safety wooden case ( fumigation free)

Power : 220V(AC) 50HZ 30W

Z axis lifting : 150mm

Working distance : 108mm

Thing fang view : 0.7~1.1mm

Video always magnificaiton : 30-230*

The camera : Color 1/3 CCD camera

Metal sets foot inch : 510 *290mm

Glass set foot inch : 360*160mm

Motion stroke : 300*200mm

Warranty : 12 month

Contact Now

3D Manual Video Measuring Machine Optical Measurment System

Equipment Summary:
Automatic 3D Coordinate Measuring System is applicable to two coordinates measuring for the purpose of all fields of application, machinery, electronics, instruments, plastic etc widely used.

Main Features:
1. Instrument equipped with RS - 232 interface, after connect with computer, using special measuring software M2D of surveying and mapping graphics processing and output;
2. Instrument by color CCD camera, zoom objective and ShiZiXian generator as measuring aiming system;
3. Grating feet and DC - 3000 electricity box composition digital measurement and data processing system;
4. The instrument has a variety of data processing, display, input and output functions, especially the workpiece adjust function very practical, Users can according to their respective needs optional printer and different measuring aiming system.

Technical Parameters:

Instrument Model	Automatic 3D Coordinate Measuring Machine
Workbench	Metal sets foot inch	510 *290mm
	Glass set foot inch	360*160mm
	Motion stroke	300*200mm
Instrument weight	200kg
Measurement and aiming system	The camera	Color 1/3 CCD camera
	Zoom optical lens range	0.7-4.5x
	Video always magnificaiton	30-230*
	Thing fang view	0.7~1.1mm
	Working distance	108mm
	Z axis lifting	150mm
Display esolutino	1µm	X.Y Coordinate measuring the over-error of indication error ≤ (3+L/200)µm
Lighting		light and transmitted light sources are surface with adjustable brightness
power		220V(AC) 50HZ 30W
Measuring software		standard for automatic measurement software, it can automatic edge finder, deburring, can point, line, circle, circle from, Angle, and adjust etc
