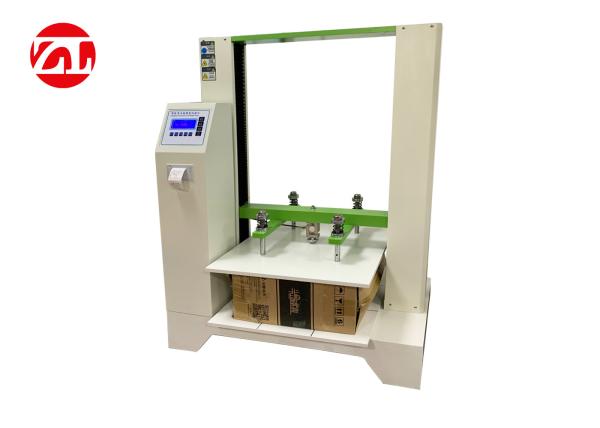

2T 5T Carton Compression Tester Box Compression Packing Testing Equipment
1. About the machine:
Computer Servo Box Compressive Tester is used for measuring the pressure strength of cartons,containers,etc, for inspecting the pressure-resistance and strike- endurance of packing materials during transportation or carry.
ZL-9001B Electronic carton resist compression test...
2. Design criteria:
| TAPPI-T804,JIS-20212,GB4857.3.4, ASTM-D642, QB/T1048, BS EN ISO 12048, GB/T4857.16, GB/T8167, GB/T8168, GB/T4857.3, GB/T4857.4 |
3. Specifications:
| Model | ZL-9001B |
| Unit (switchable) | Kg, Lb, N |
| Capacity (optional) | 2 T ,5T |
| Load Resolution | 1/100,000 |
| Stroke (exclude the grips) | 400 mm |
| Load Accuracy | ≤0.5% |
| Test Space (L×W×H) | 1500×1500×1500mm |
| Speed of Compression | 10 ± 3 mm/min |
| Operation Mode | PC |
| Report Items | Serial number, Peak value, Average value, Designated holding pressure value; all memorable |
| Structure | AC Frequency Conversion Motor ( Taiwan);
Imported screw rod ;4 sensors; LED display |
| Dimension (L×W×H) | 2370×1500×2100mm (can be custom made) |
| Power | 1ø, 220v/ 50Hz |
| Weight | Approx. 850kg |
| Safety Devices | Overload protection, overvoltage protection & limited position protection device |
| Standard | TAPPI-T804, JIS-20212, GB4857.3.4, ASTM-D642 |
4. Features of Computer Servo Box Compressive Tester :
- Using a single-screen operation; do not need to switch the screen;
- With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily;
- Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily;
- The pattern of Test reports can be self-designated; test data can be displayed directly in the main screen;
- Choosing translational, comparative mode at the same time to make a number of curve data comparison;
- With a variety of measurement units, Measure In Imperial & Metric are switchable;
- With self-return & auto-correction function;
- With automatic magnification function, in order to achieve the most appropriate size of the graphics;
- With the user-defined Test methods; with experimental data analysis function;
- It can do test of compression, bending, pressure holding & fatigue.
- With high precision and accuracy and reasonable price, it can test the crush instantaneously and stop automatically.
FAQ
1. How to choose the most suitable Mechanical Equipment ?
Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do andthe required specification.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15~20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
3. Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines
according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
4. Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
5. Do you have customers of our country before?
Now our testing machines have been sold to more than 95 countries, like USA, Canada, Russia,UK, Italy, Germany, European , India, Pakistan, Philippine, Singapore, Malaysia,Thailand , Vietnam, Korea,Saudi Arabia,Brazil...and so on.
