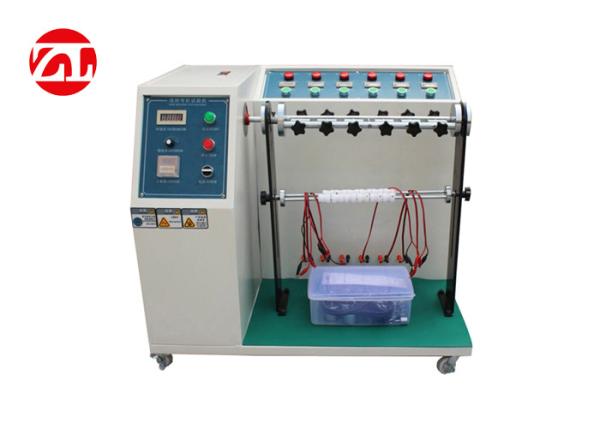

IEC884-1 360° Cable Plug Bend Testing Machine With 6 Groups Test Stations

  • 1
  • 2
  • 3

Brand Name : ZL

Model Number : ZL-1027B

Certification : CE,ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 60 Sets

Delivery Time : 5-8 work days

Packaging Details : IEC884-1 360° Cable Plug Bend Testing Machine with 6 Groups Test Stations is packaged within wooden case.

Product name : IEC884-1 360° Cable Plug Bend Testing Machine with 6 Groups Test Stations

Total count : 0-999999 times can be set manually

Bending angle : 10°-360°(Manually adjustable ±1°)

Test speed : 5-60 times/minute adjustable

Load : 50g,100g,200g,300g,500g

Total power : 200W

Power supply : AC220V/50Hz/2A

Key words : 360° Bend

Contact Now

IEC884-1 360° Cable Plug Bend Testing Machine with 6 Groups Test Stations

Application:

This testing machine complies with UL817, CSA222, CCC, VDE, GB2099.1, IEC884-1, SAA and other relevant standards "General safety requirements for flexible cord components and power cords". It is suitable for bending test of power cord and DC cord by related manufacturers and quality inspection departments.

It is used to test the bending resistance and performance of the products under certain speed, lifting weight, and times of wires, cables and various products.

ZL-1027 Cable plug bend testing machine.pdf

Corresponding standard:UL817,CSA222,CCC,VDE,GB2099.1,IEC884-1,SAA

Specification:

Model ZL-1027B
Test station 6 groups of wire bending tests are carried out at the same time each time
Counting function wire breakage and power failure saving test times function
Total count 0-999999 times can be set manually
Bending angle 10°-360°(Manually adjustable ±1°)
Test speed 5-60 times/minute adjustable (digits directly display the current test times)
Load 50g,100g,200g,300g,500g (6 ±2g each, or as specified by customer)
Motor Jingyan brand motor AC: 90W
Counter/Relay Imported Oumulon is stable and durable
Weight 110kg
Dimension (WxDxH) 1250*400*1100mm
Total power 200W
Power supply AC220V/50Hz/2A

Accessories:

Operation manual, 1 copy

Power cord 1 pc

Inner hexagon 1 pc
